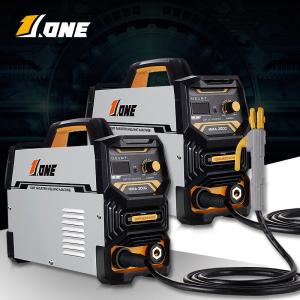

140A/160A Inverter MMA Welder

Product Categories

Dongguan Jone Welding Technology Co., Ltd.

Contact Now

140A/160A Inverter MMA Welder

Name: 140A160A Inverter MMA Welder
Brand: JONE
Price: 1 USD

Brand Name : JONE

Model Number : MMA-200C 250C 300C

Certification : ISO9001,CE,CCC

Place of Origin : China

MOQ : 100PCS

Payment Terms : L/C, T/T, Western Union,, D/A, D/P

Supply Ability : 1 million pieces per year

Delivery Time : 30days

Packaging Details : 350*206*275kraft paper box

Price : Negotiate

AC Input Voltage(V) : 220V (110V/220V can do)

Input Frequency(Hz) : 50/60

Real Amp(A) : 120A/140A/160A

Non-load Voltage(V) : 56

Class of Insulation : F

Input power cable(m) : 1.8

Quick joint Size(mm) : 35-50

Contact Now

Factory sale best price IGBT MMA-250C INVERTER DC arc welder mma 200 welding machine

Description

The inverter arc welding machine is a powerful, versatile tool designed to work with any type of metal. It features high power output, multiple functions and portability, making it a great choice for any welding project. This series is compact and lightweight, with 190% load factor for a high performance.

Features

digital display
Welding adjustment range is broad
uniform quality of welding
the fan stops automatically

MMA inverter welder characteristics

The MMA-300C's inverter technology ensures that it will provide consistent performance no matter what type of work you're doing--whether it's metalworking or welding. The inverter helps to maintain a stable arc and smooth operation even when you're using high currents at high speeds.

Model	MMA-200B	MMA-250B	MMA-300B
Type	IGBT 1PCB	IGBT 1PCB	IGBT 1PCB
Real Amp(A)	120	140	160
AC Input Voltage(V)	220V (110V/220V can do)	220V (110V/220V can do)	220V (110V/220V can do)
Rated Input Power Capacity(KVA)	5	6.2	7
Input Frequency(Hz)	50/60	50/60	50/60
Non-load Voltage(V)	56	56	56
Output current range(A)	20-200	20-250	20-300
Rated Duty Cycle(%)	60%	60%	60%
Efficiency(%)	85%	85%	85%
Class of Insulation	F	F	F
Protection class of case	IP21	IP21	IP21
Electrode diameter (mm)	1.6-3.2	1.6-3.2	1.6-4.0
Quick joint Size(mm)	35-50	35-50	35-50
Input power cable(m)	1.8	1.8	1.8
N.W./G.W.(kg)	3.8/5.6	4/5.8	4.2/6
Machine Size(LxWxH mm)	310137225	310137225	310137225
Package(LxWxH mm)	350206275 kraft paper box	350206275 kraft paper box	350206275 kraft paper box
Accessories	1.8m 16mm² 200A holder	1.8m 16mm² 200A holder	1.8m 16mm² 200A holder
	1.2m 16mm² 300A clamp	1.2m 16mm² 300A clamp	1.2m 16mm² 300A clamp
	mask,brush,belt,manual	mask,brush,belt,manual	mask,brush,belt,manual

Advantages Of Electric Welding Machine

Electric welding machine is suitable for working in dry environment, does not need too many requirements, because this weld is as strong as the base metal and sealed well, which solves the problem of sealing and strength for the manufacture of storage gas and liquid containers.

140A/160A Inverter MMA Welder

FAQ

Q:What kind of welding machines warranty do you have?
A:We provide a 1-year warranty to most of our welding machines product. For more information, please send the product model and send an email to us.

Q:Can you offer welding machines for testing?
A:Yes, Sure my friend we can offer welding machines for the test as you need.

Q:Can I buy other factory's products directly from you?
A:Yes, of course. There are already many customers cooperating with us in this way. We have over 20 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
